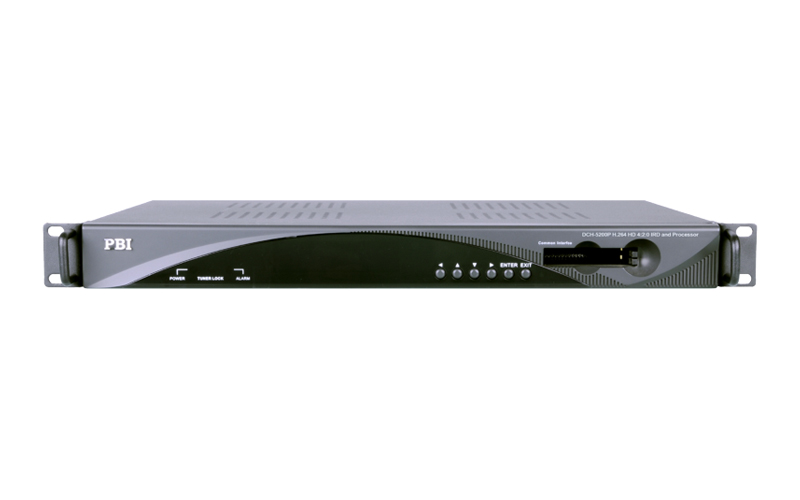

DCH-5300P

The DCH-5300P is the new model of PBI’s IRD product family. It provides operators an ideal solution for receiving, remultiplexing, descrambling and decoding operations. Equipped with a variety of inputs, it ensures compatibility with all transmission media. The DCH-5300P’s re-multiplexing capabilities enable creation of new transport streams that are subsets of the original stream. Customized services may be output as multiple SPTS or MPTS over IP, as well as over ASI. By the dual DVB common interfaces, DCH-5300P could decrypt multiple services in one transport stream or two. DCH-5300P is also a professional IRD that features a broadcast quality decoder for MPEG-2 and MPEG-4 AVC/H.264/H.265/HEVC 4K/AVS2 in Standard Definition and High Definition formats, and provides a variety of industry standard digital and analog outputs, including CVBS video，AES/EBU Audio, analog Audio, SD/HD -SDI and HDMI interfaces. The unit also performs aspect ratio adaptation of HD programs to generate professional quality baseband analog video and audio outputs for easy integration with existing cable network infrastructure. This all-in-one architecture makes the DCH-5300P an ideal product for distribution and contribution networks. DCH-5300PE can trans-code any digital TV format to SD/HD H.264 and SD MPEG-2 format.

• Variety of input options DVB-S2/S/C/T, TS/IP and ASI
• SD/HD/UHD MPEG-2, MPEG-4 AVC/H.264/H.265/HEVC AVS2 video decoding
• Supports 2 channel Digital Audio AES/EBU output, Dolby AC3 decoding
• Supports Transcoding (DCH-5300PE)
• Analog and Digital Outputs, ASI, CVBS, AES/EBU Audio, HDMI, HD/SD-SDI, TS/IP
• 2×DVB-CI Slots, support for all major CAS and CAMs, BISS-1 and BISS-E descrambling
• Built-in TS re-multiplexer receives from ASI, Tuner and TS/IP Inputs
• Redundant backup among Tuner, ASI and TS/IP with configurable priority
• Dynamic PMT detection and automatic updating
• Supports VBI TELETEXT, EBU/DVB Subtitle, Closed Caption
• UDP/RTP, Unicast/Multicast, and double full duplex SPTS/MPTS over IP
• Remote Control and Supervision by SNMP, HTTP WEB and Proprietary HDMS software
• On Site software update through IP and USB
• RSSI, received Eb/No & BER monitoring

Order Information

Back panel Interface (Full option)

  DCH-5300P
